Redline Explorer Tri-Color Interior Windshield Light

Redline Explorer Tri-Color Interior Windshield Light

The Redline Explorer solves the biggest problem with interior dash lights: backflash. A flexible silicone housing conforms to curved glass and seals with 3M VHB tape, keeping light out of the cabin so you can focus on the road.

It's SAE J595 Class 1 and SAE J845 Class 1, bright enough to punch through daylight.

Key Features

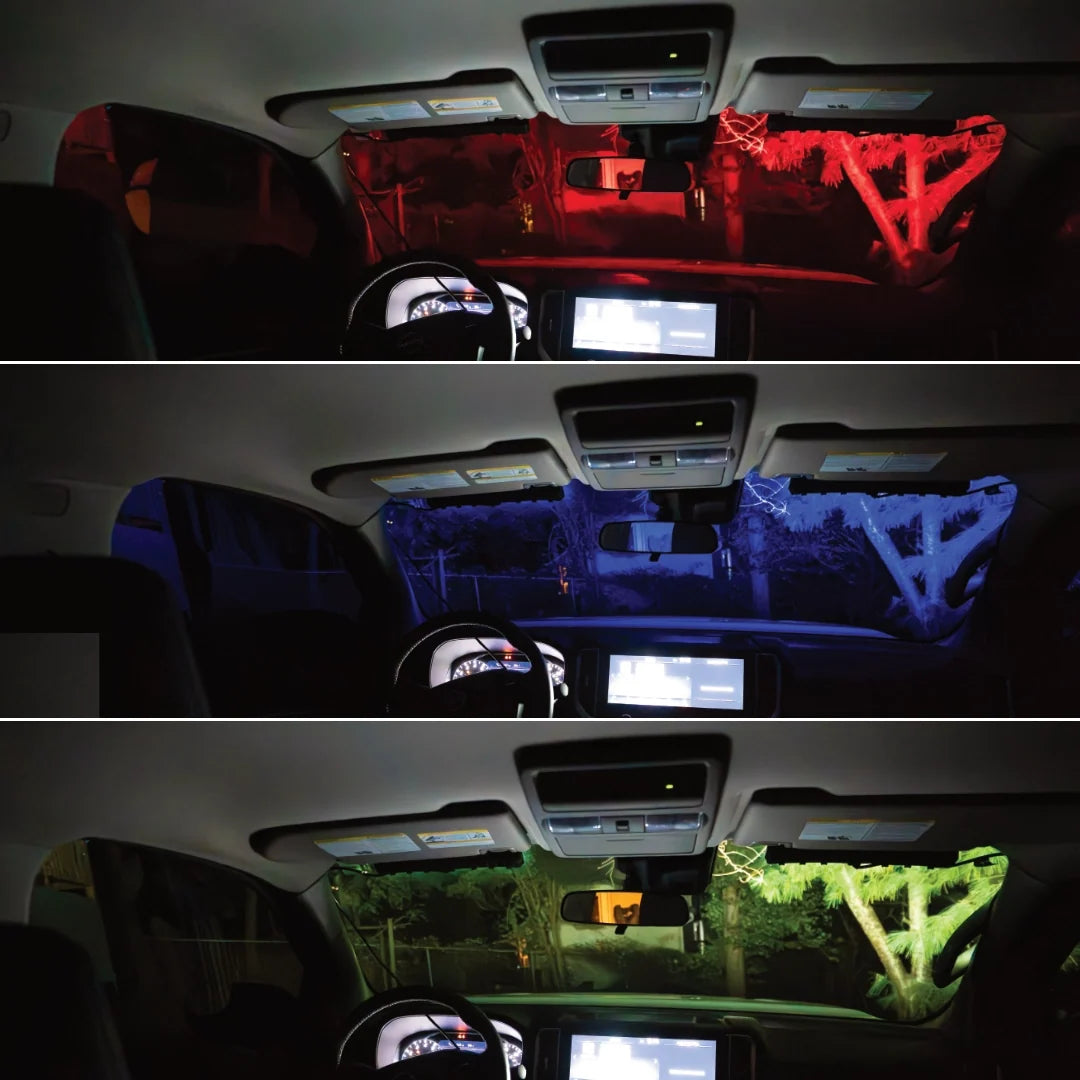

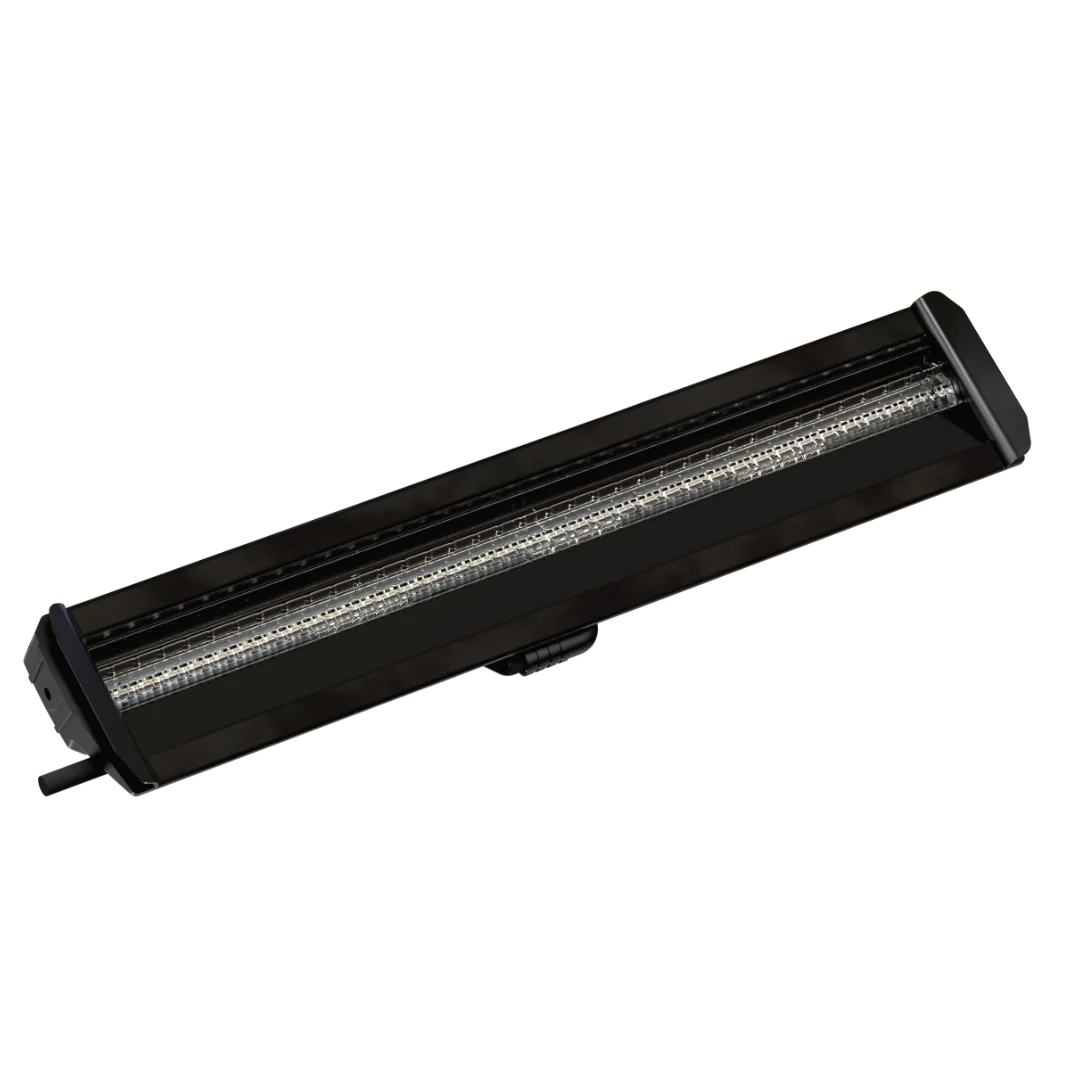

• Flexible silicone housing with no flashback
• Tri-color LEDs
• 3M VHB mounting included, rated from -40°F to 200°F
• Plug-in power cable that can be hardwired (four independent modes)
• Steady-burn pattern for external controller flashing
• Synchronizable with other Explorer lights
• Commander programmable

Choosing an Angle

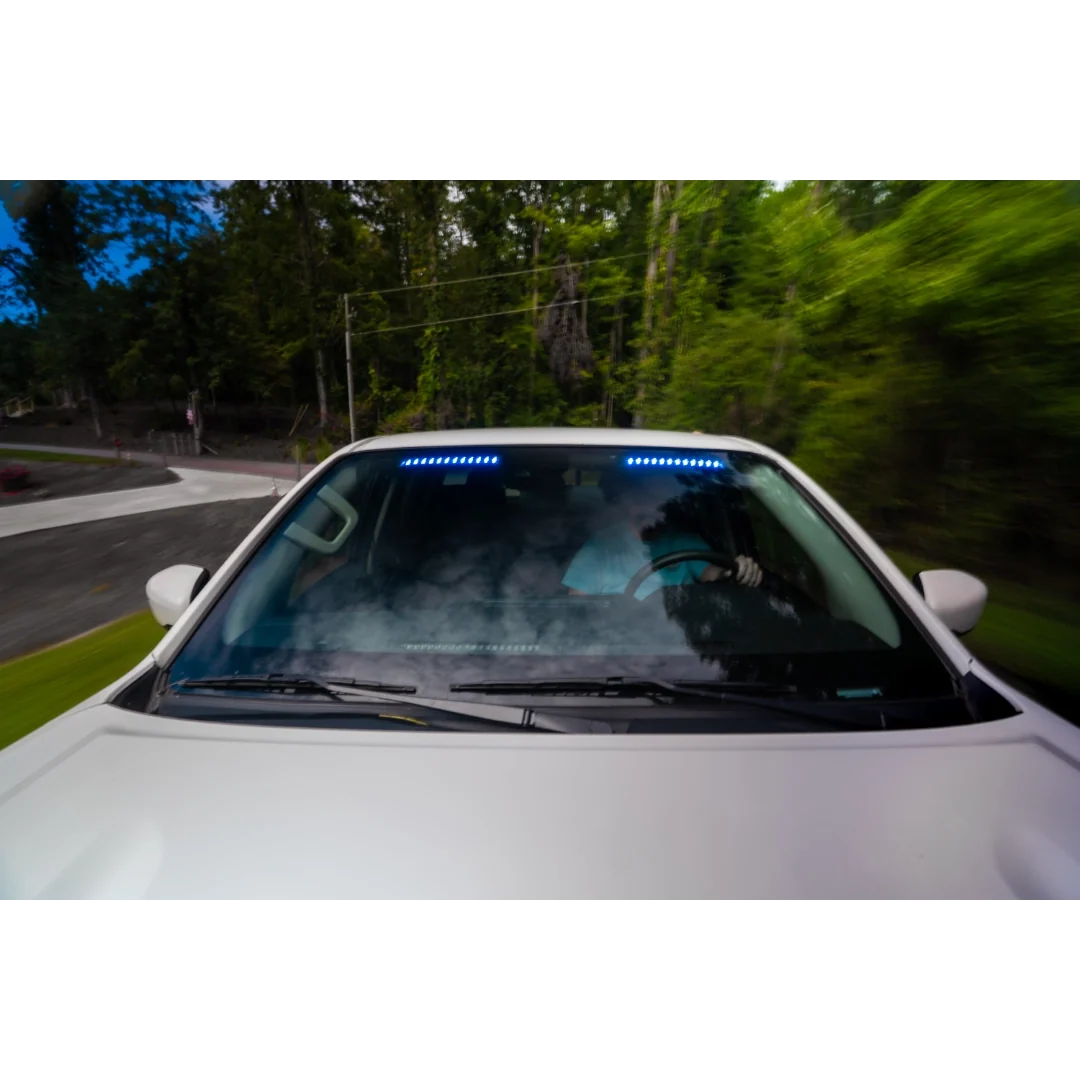

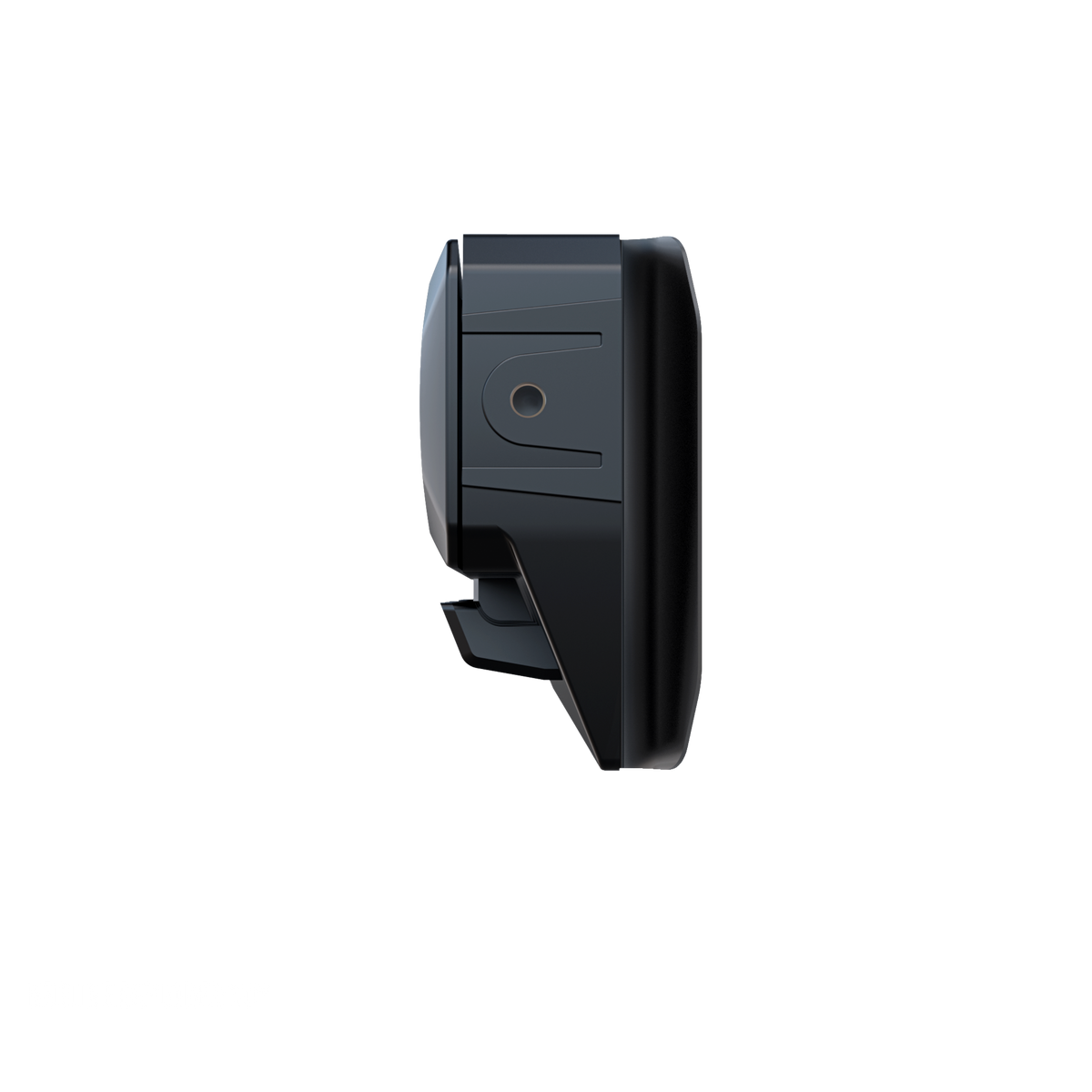

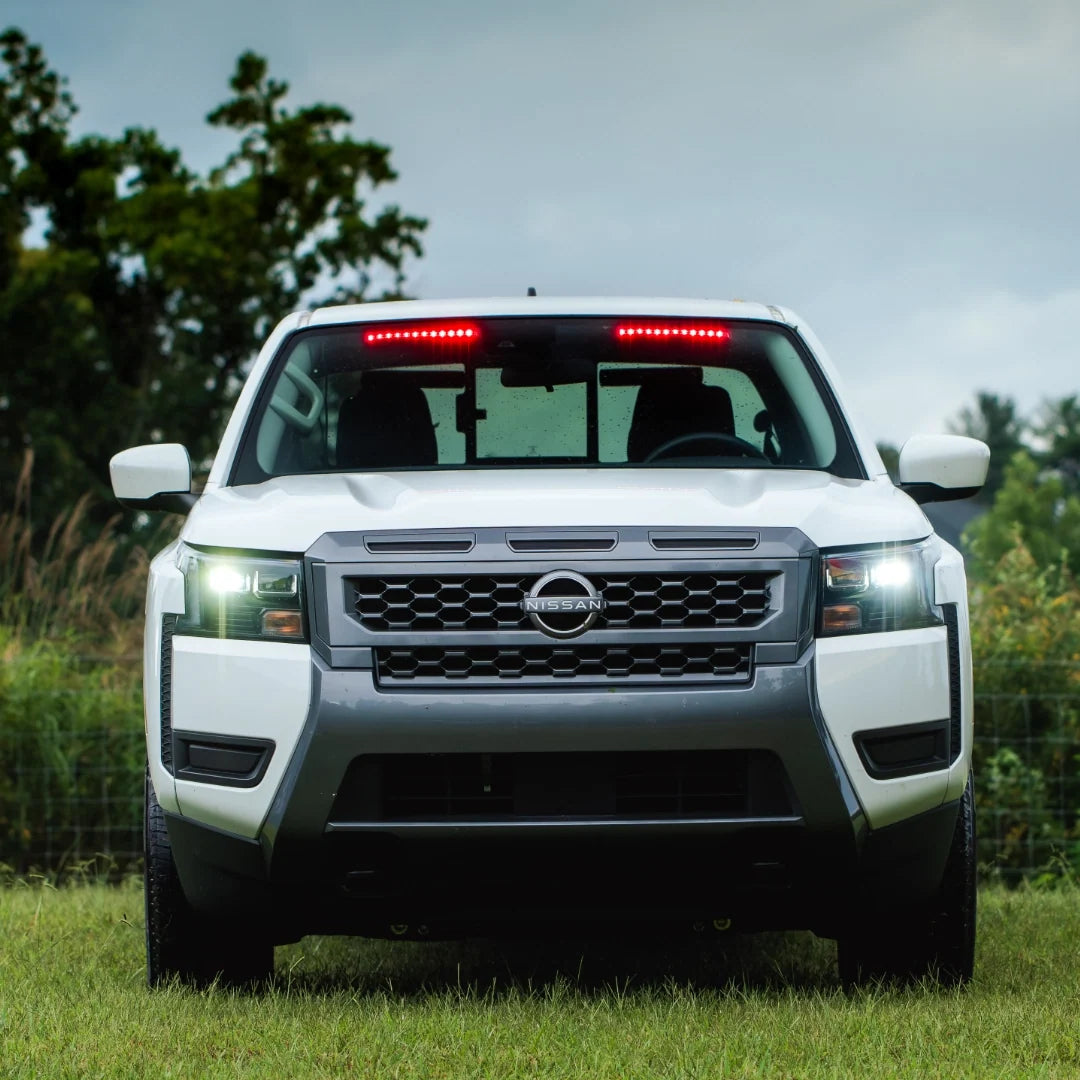

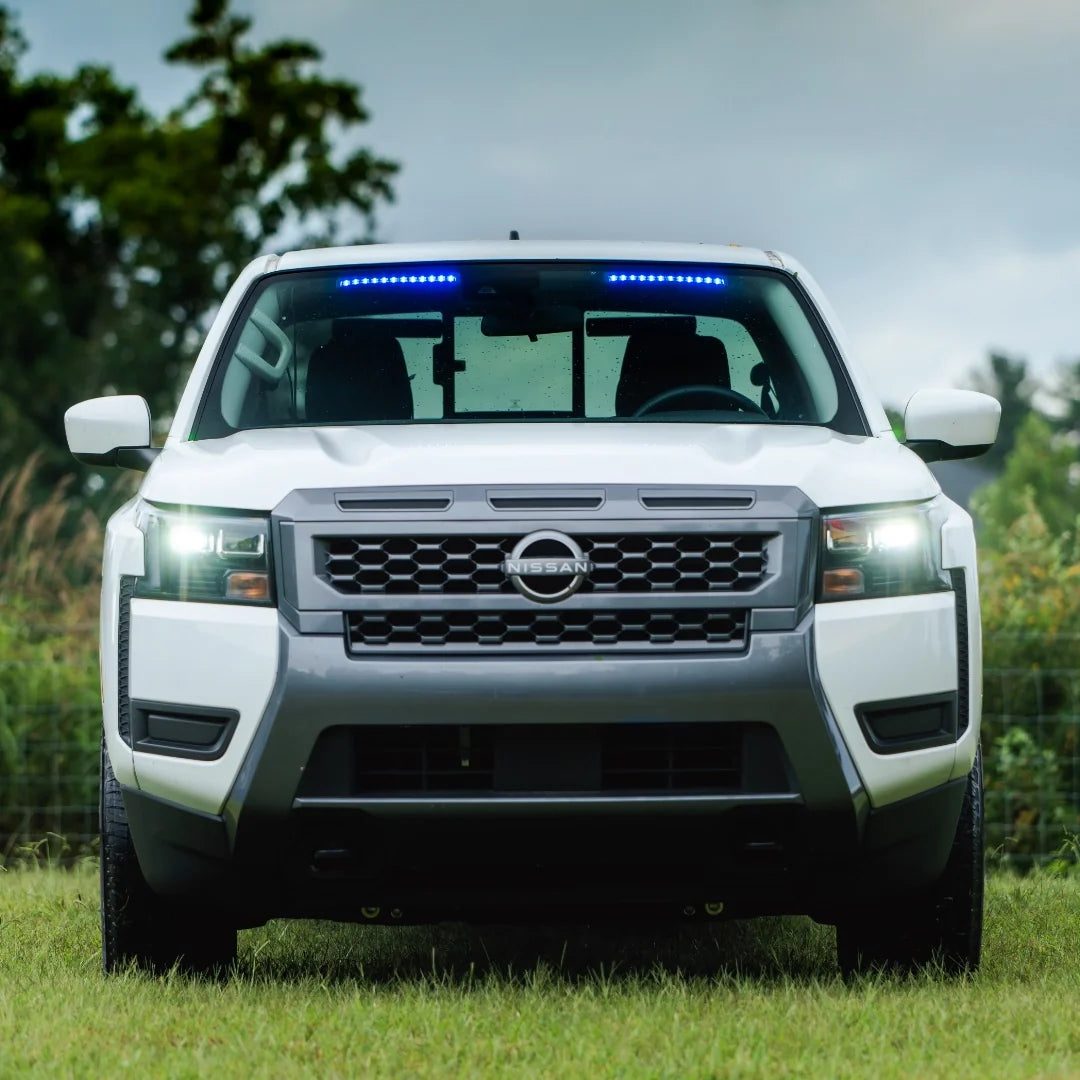

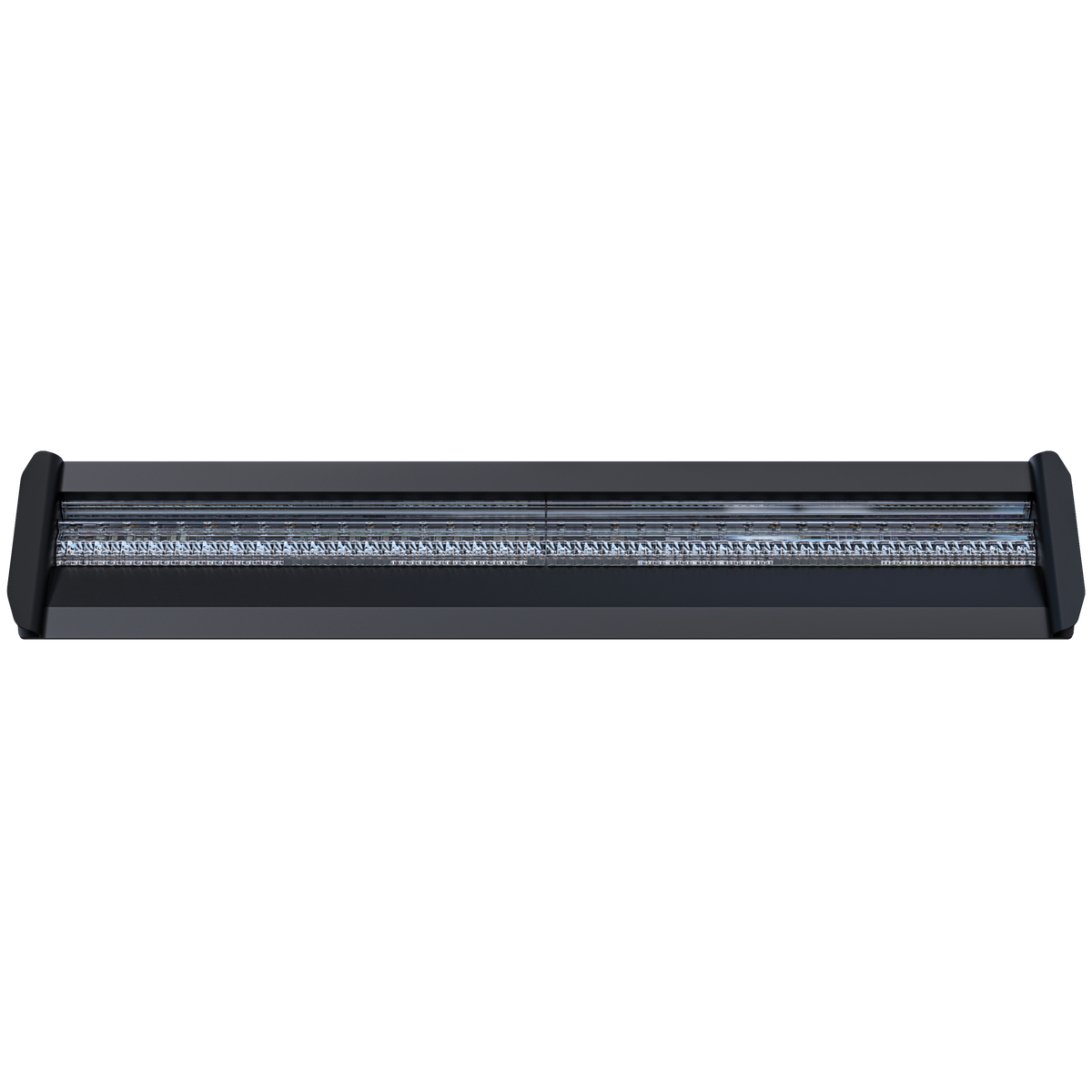

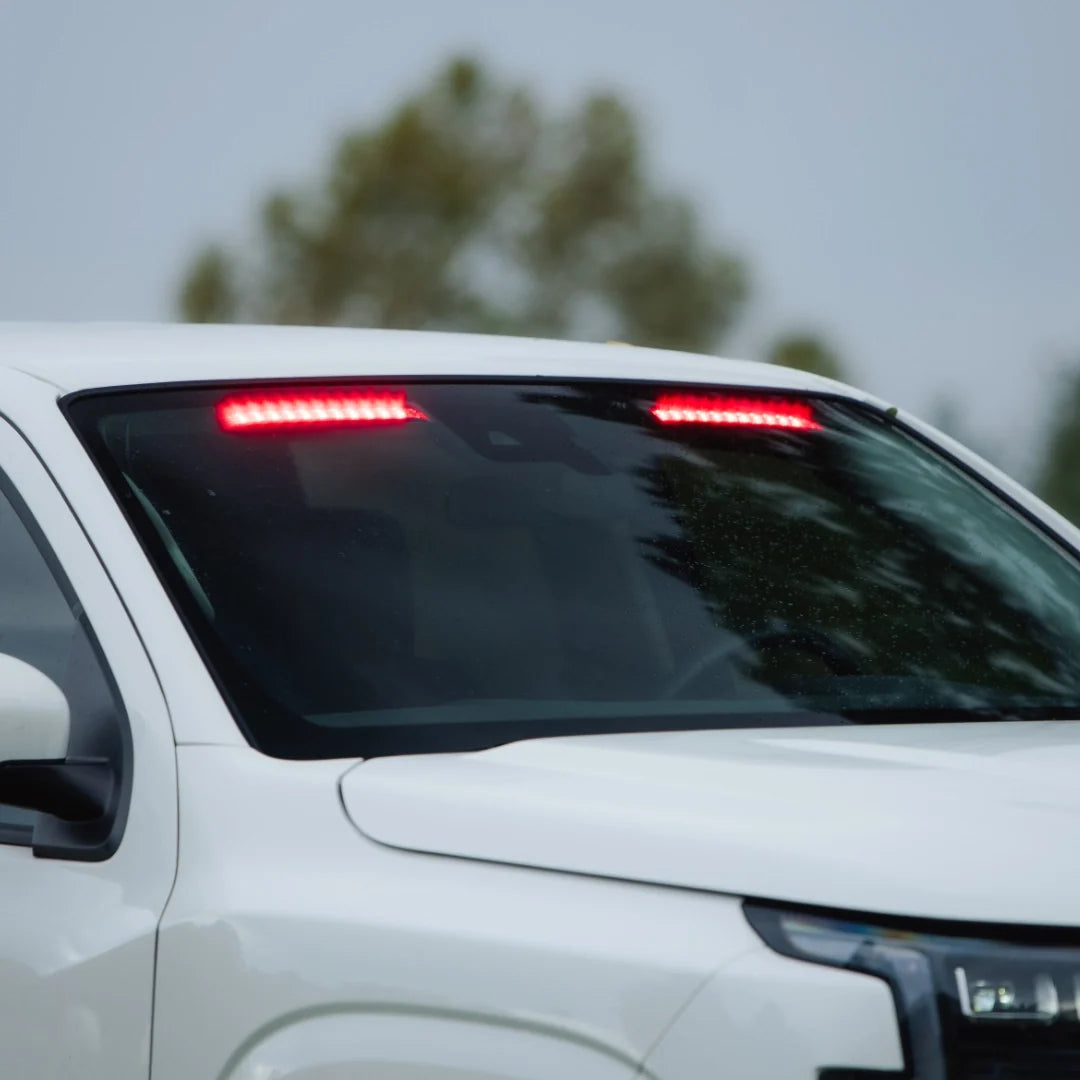

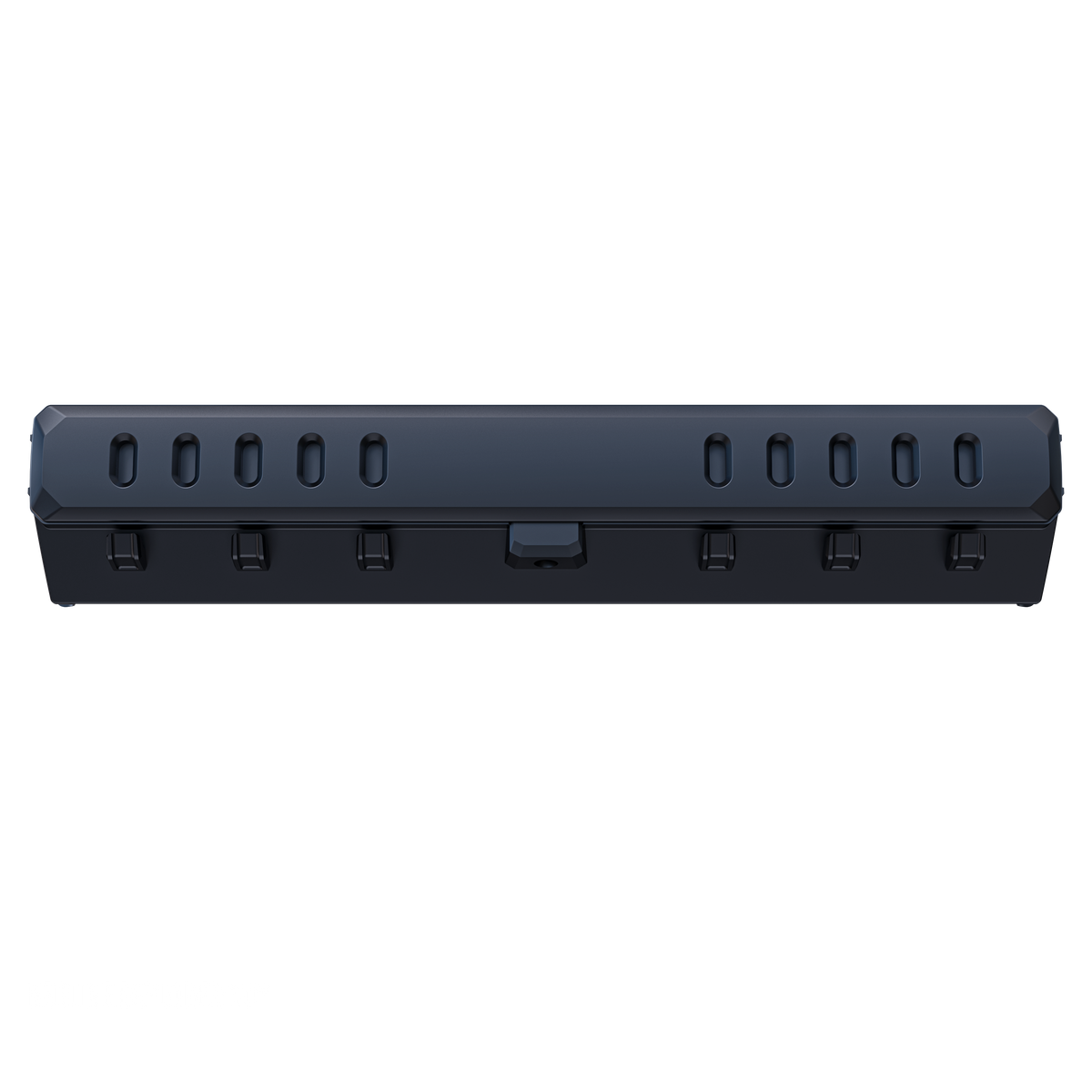

• 30-degree: for windshields

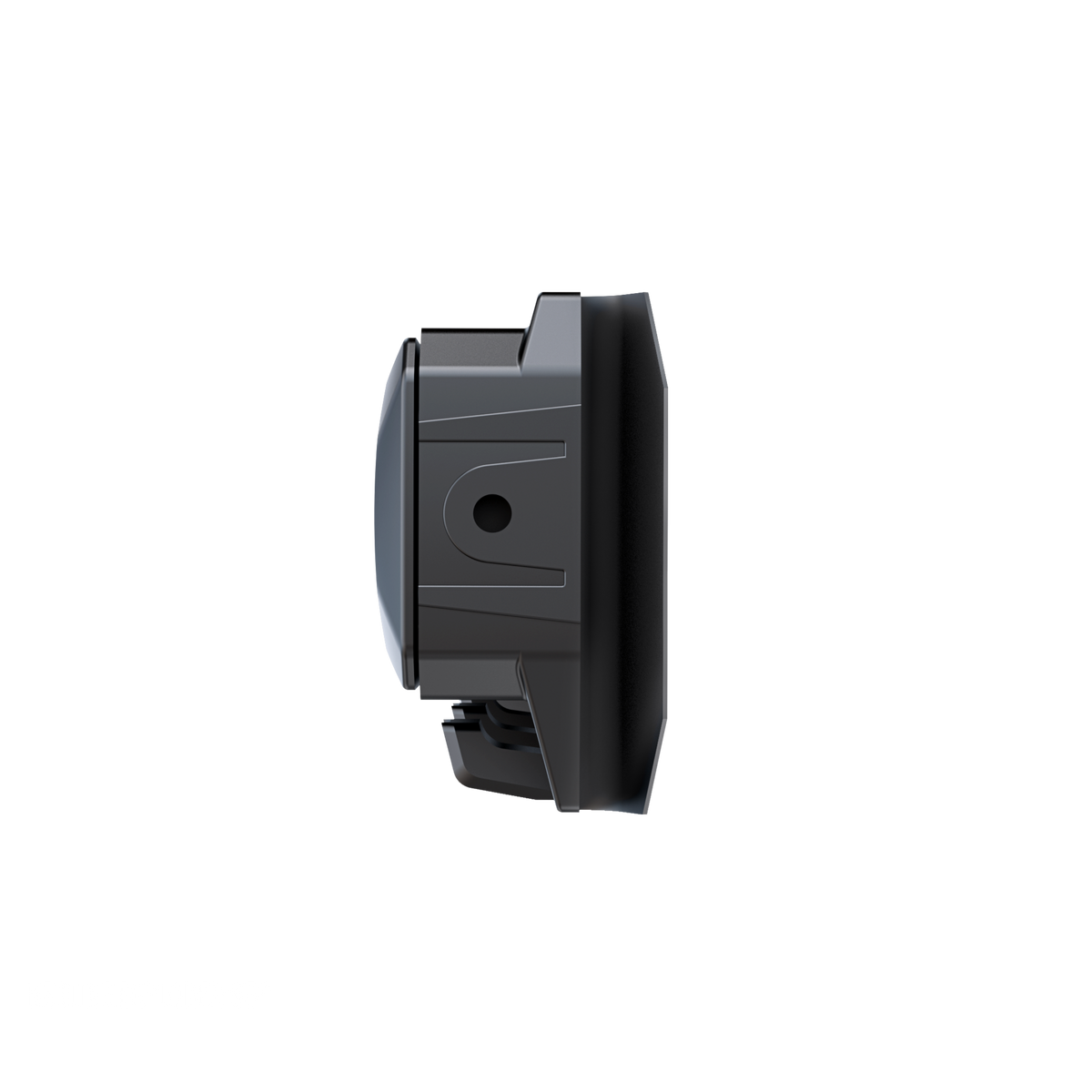

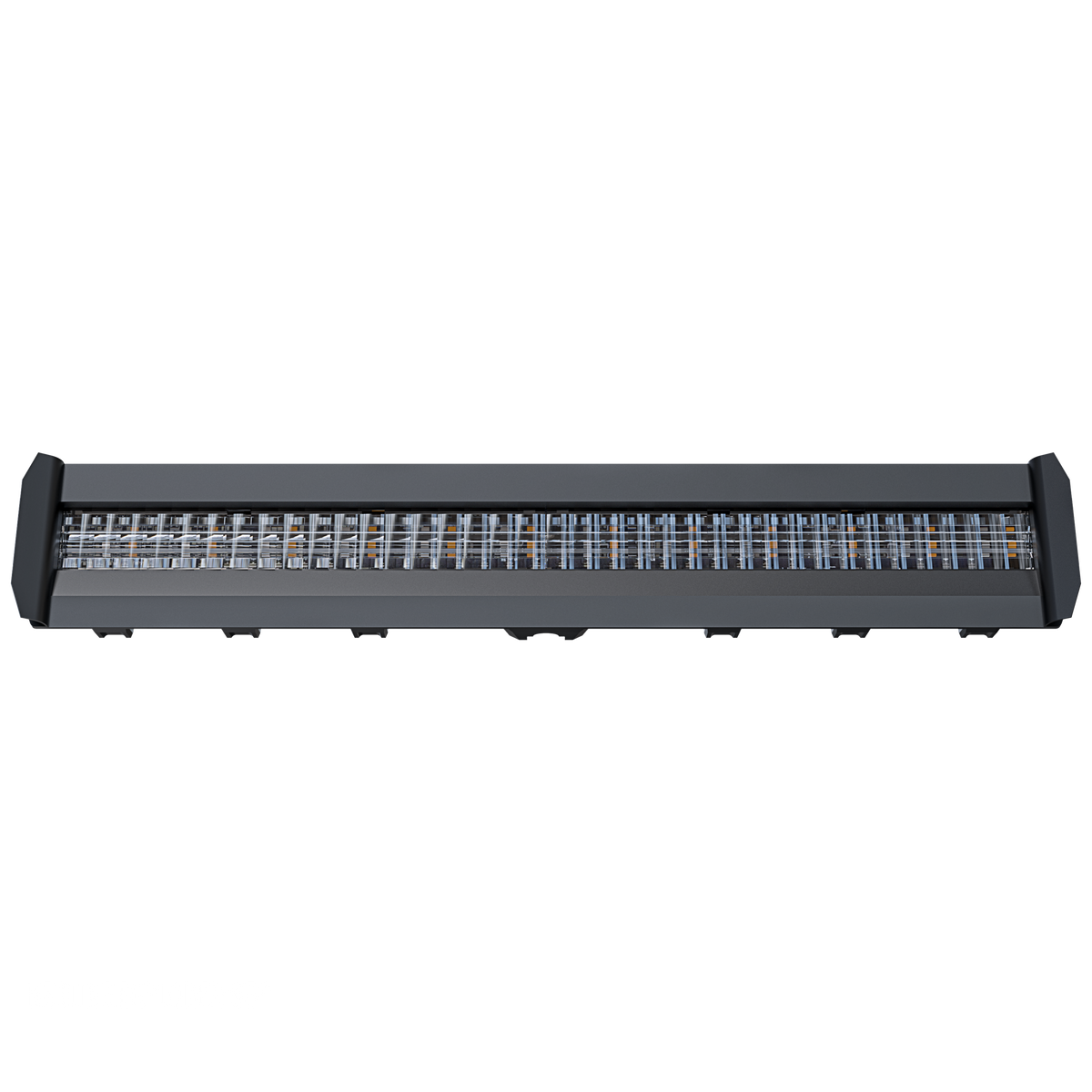

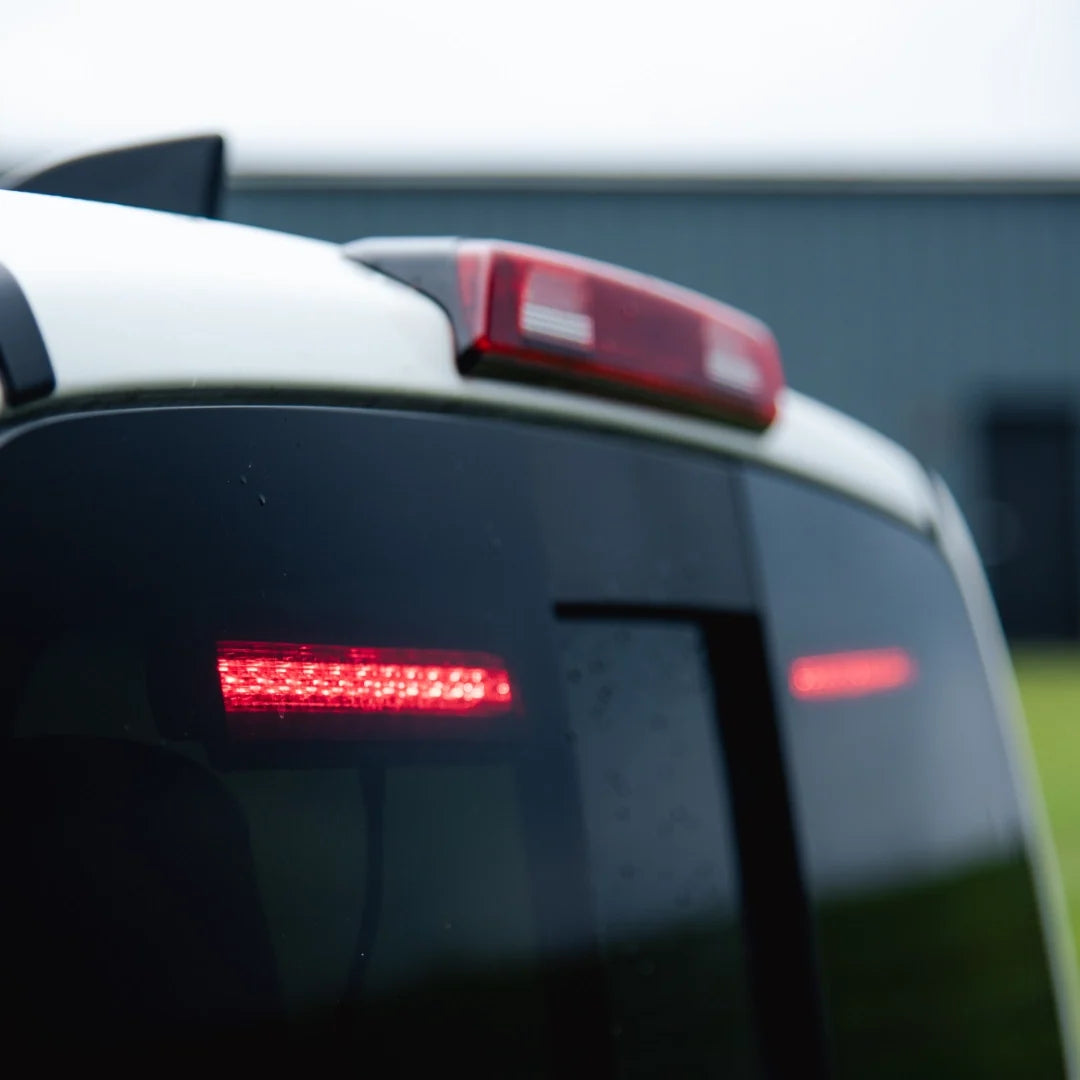

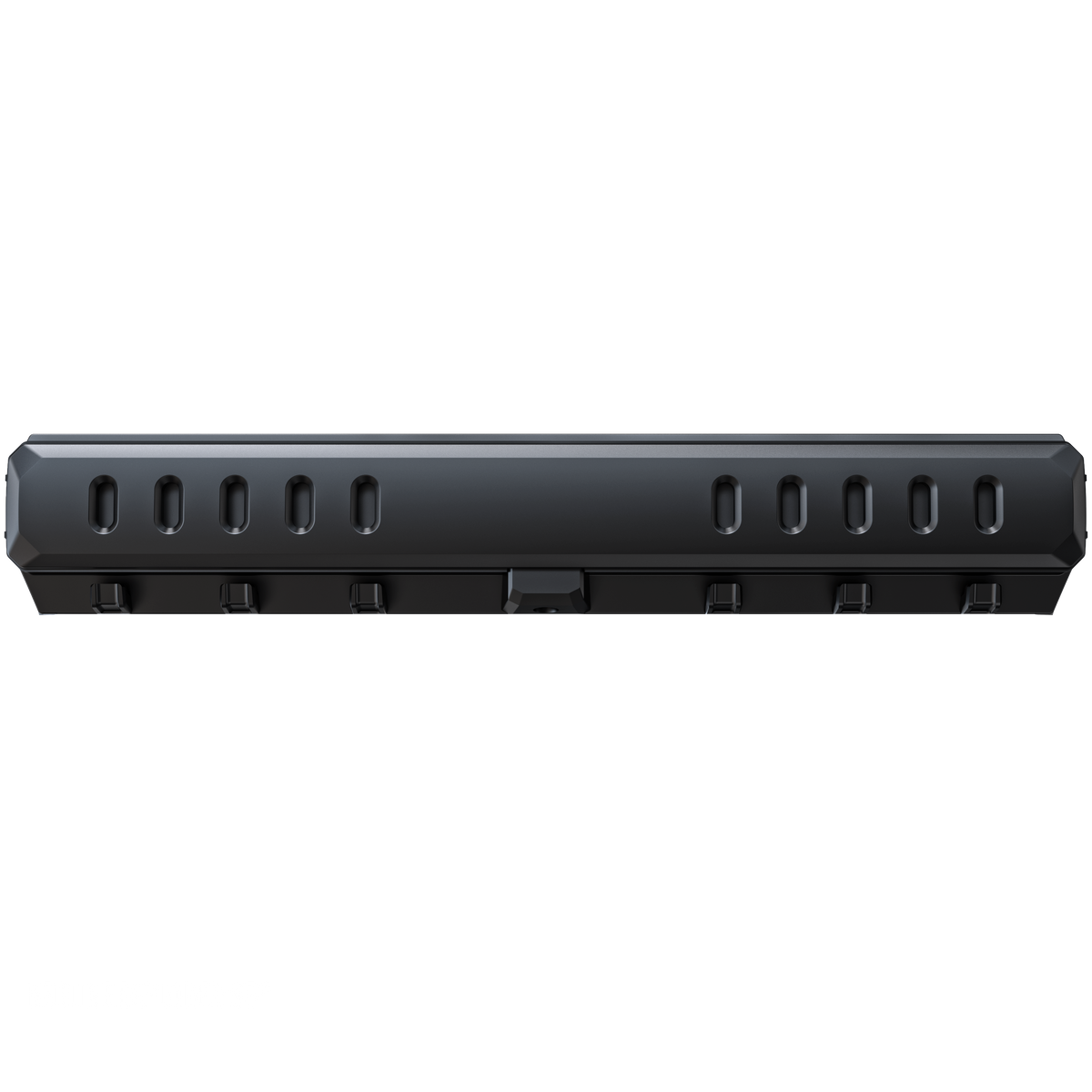

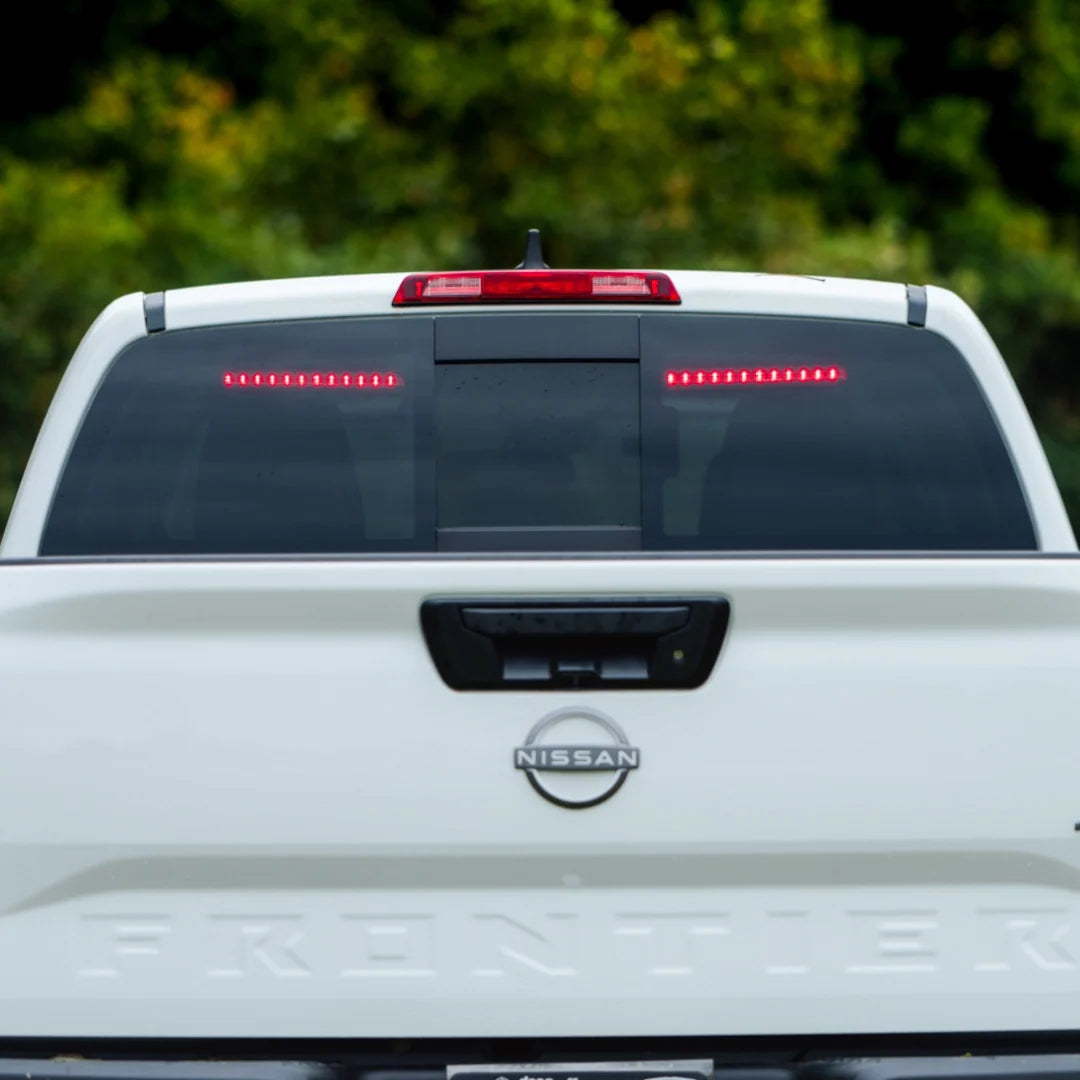

• 65-degree: for rear and more vertical glass

How Many to Order

Explorer is sold as a single light.

• Good: one light

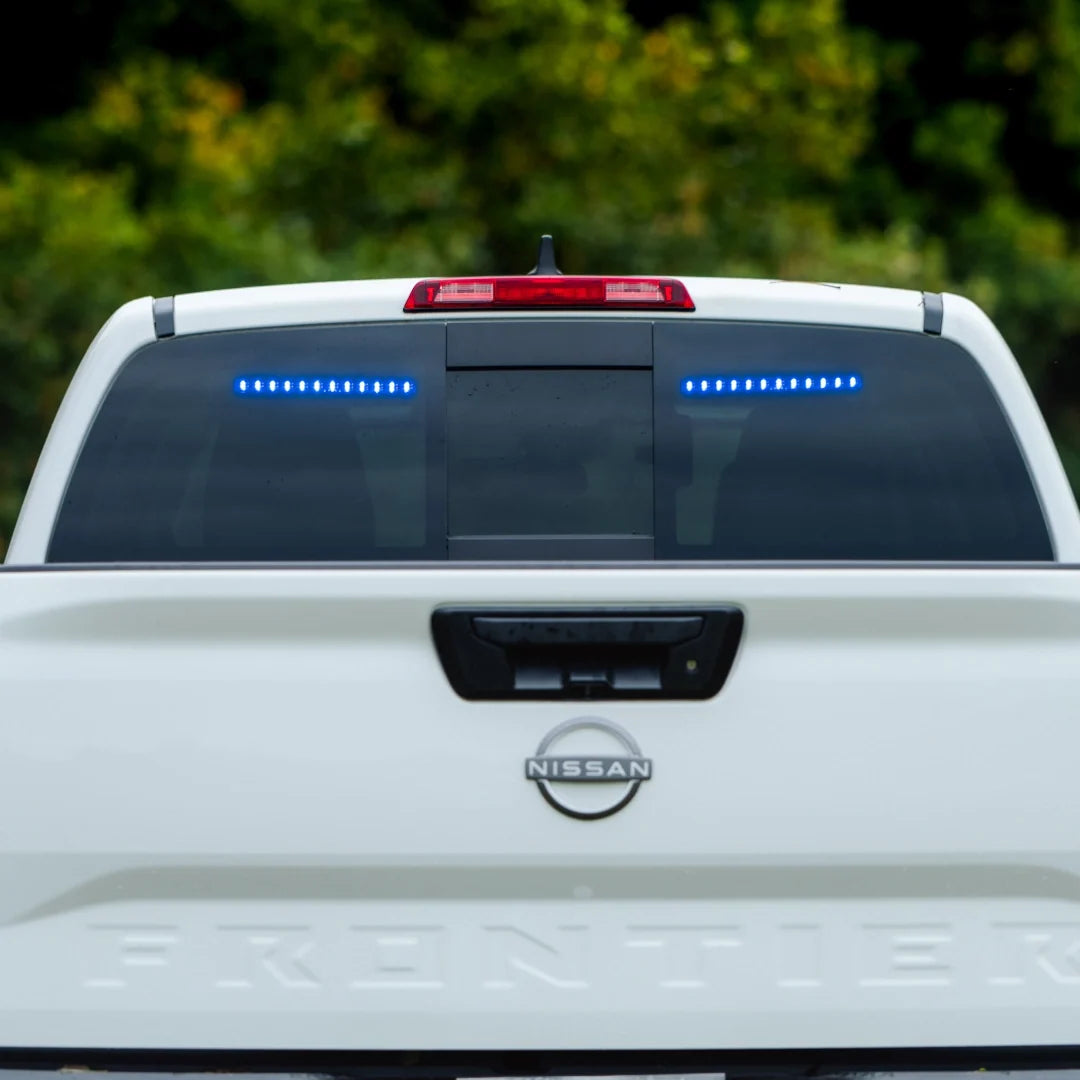

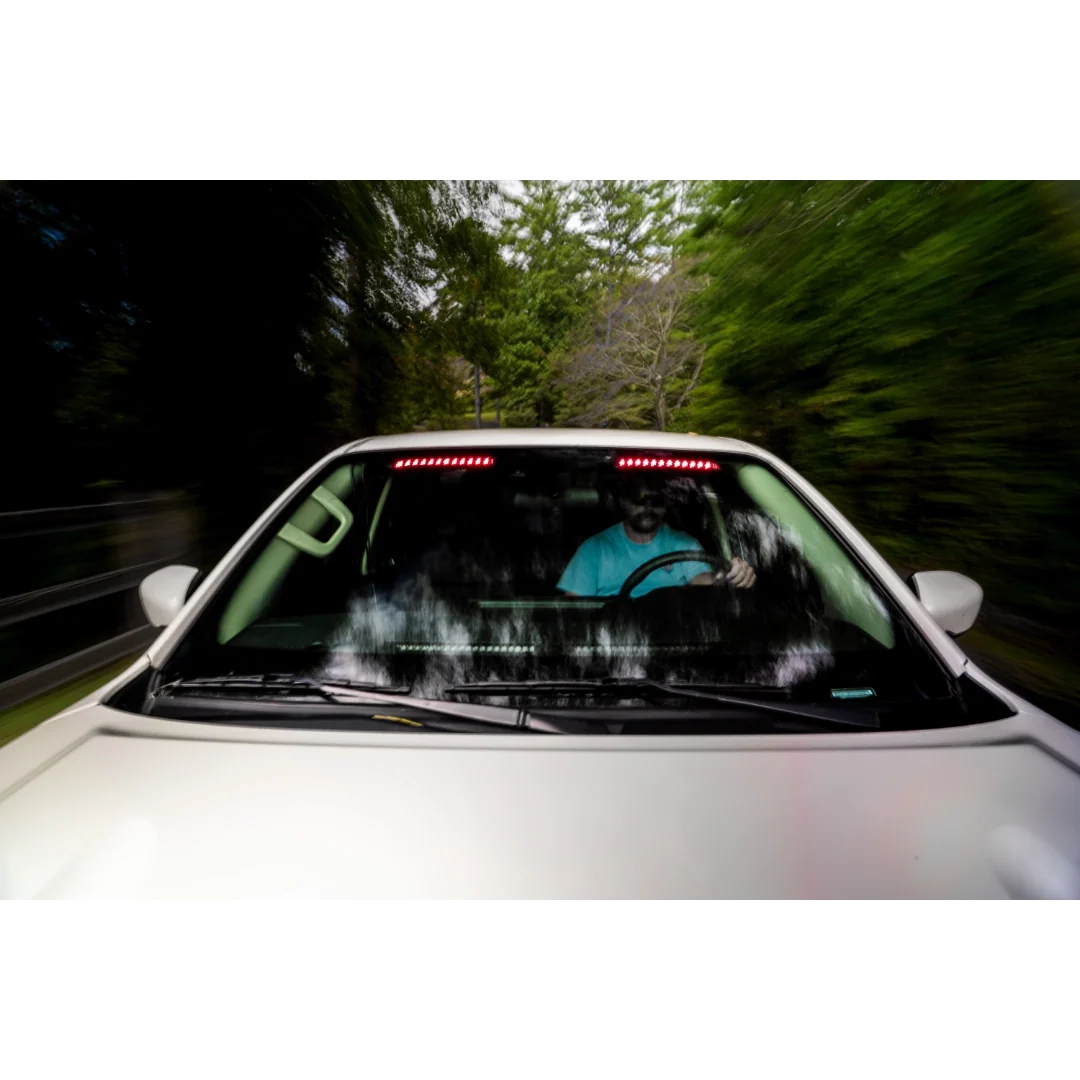

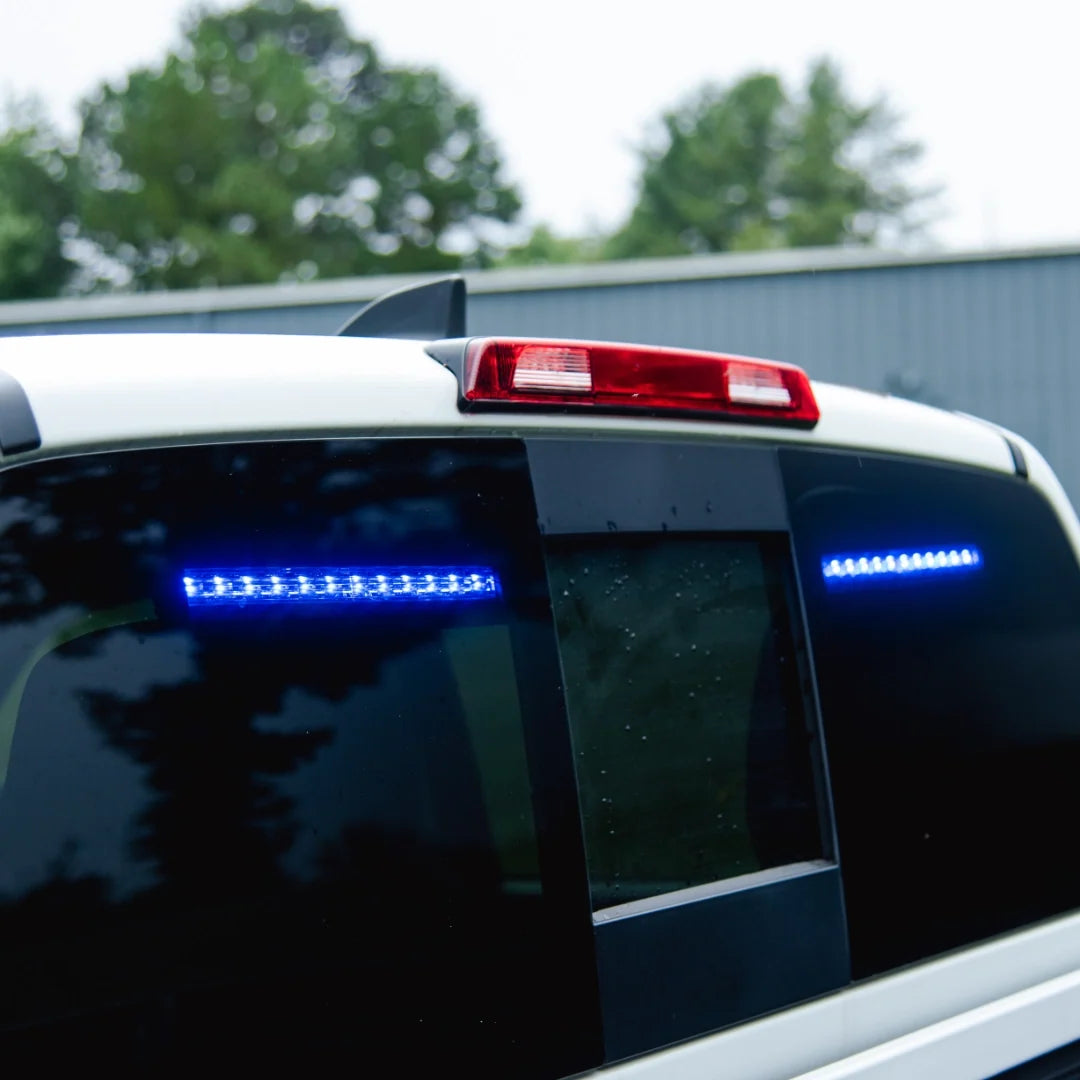

• Better: two lights, one 30° on the windshield and one 65° on the rear window
• Best: four lights, two 30° across the front glass and two 65° across the rear

Installation Notes

• Ships with a lighter plug for plug-and-play use
• Hardwire for permanent install: black = ground, red/white/green = modes, yellow = sync/pattern
• To sync multiple lights, tie the yellow wires together and set the same pattern
• Removable with fishing line; remount with fresh 3M tape

Know your state and local regulations for emergency warning lights before use.

Warranty

5-year manufacturer warranty.
